Milkyway Small Panels Featured

U-Tron's super flat, low power consuming and elegant Milkyway Small Square Panel Light is t

he perfect solution for any situation that requires elegant and subtle lighting. The Milkyway LED Panel Light is very suitable for residential lighting, hotels, restaurants and shops. Its low power consumption and slim form makes it convenient for installations into any ceilings.

Click to Download Datasheet

68MW-012-W1717 / 68MW-009-W1515 / 68MW-006-W1212

Product Technical Data

General Information   Product Dimensions 12W 9W 6W
Heatsink   6063-T5 aluminum alloy Lamp Length 170mm 150mm 120mm
Life Span   50000hr   Lamp Width 170mm 150mm 120mm
        Lamp Height 30mm 30mm 30mm
        Cut Out 160x160mm 135x135mm 110x110mm
Light Characteristics
Efficacy 80lm/W
Beam Angle 120
CCT 2700-3500K Ordering Information
Flux 960lm / 720lm /480lm  Product Number 68MW-012-W1717 68MW-009-W1515 68MW-006-W1212

Color Rending Index 80   Product Name Milkyway
Panel Light
12W Warm White
Milkyway
Panel Light
9W Warm White
Milkyway
Panel Light
6W Warm White


Electrical Characteristics   Pieces Per 20' container 2500 2500 2500
Wattage   12/9/6W   Pieces Per 40' container 6000 6000 6000
Voltage   universal

Temperature



Operating Temp. -40(min), 45(max)C
Storage   -40(min), 45(max)C

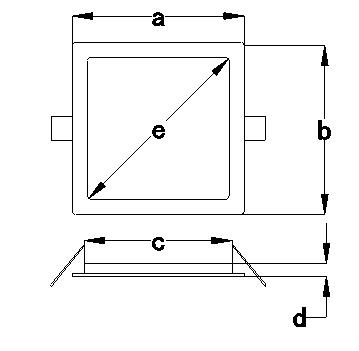

Milkywaysmallpanel

  a b c d e
6W 120mm 120mm 110mm 12mm 95mm
9W 150mm 150mm 135mm 12mm 140mm
12W 170mm 170mm 160mm 12mm 165mm
