Description:

These Down Lights are jointly developed by Shanghai FUCIDA Company and IICE Inc., exclusively for TESCO Superstores corridor lighting. These Down Lights utilizing U-Tron's UFO Engine technology which has over 6 years of proven success. Incorporating the LED technology to retrofit existing Halogen Down Lights made by Shanghai FUCIDA Company needs careful integration as to maximize the light spread and cooling efficiency. To achieve the best results and minimizing the cost the casings of the Down lights must act as the UFO Engines heat sink, this way we can pack as much as 30 High Power LEDs made by Cree which gives more then 120Lumen per every watt.

Physical Characteristics:

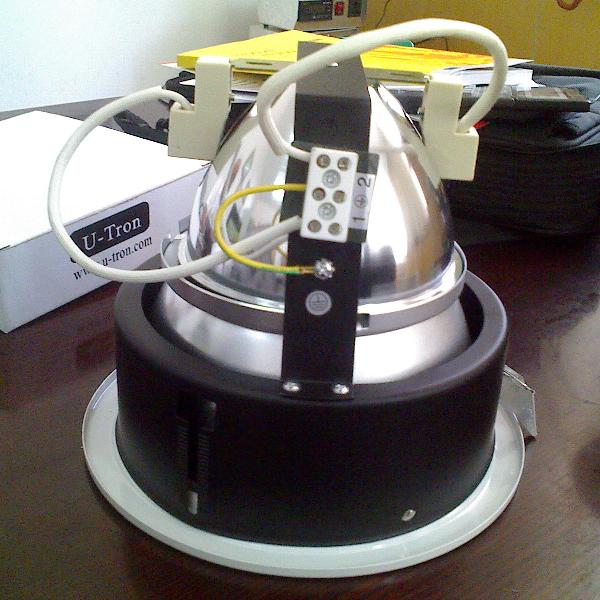

Figure 1

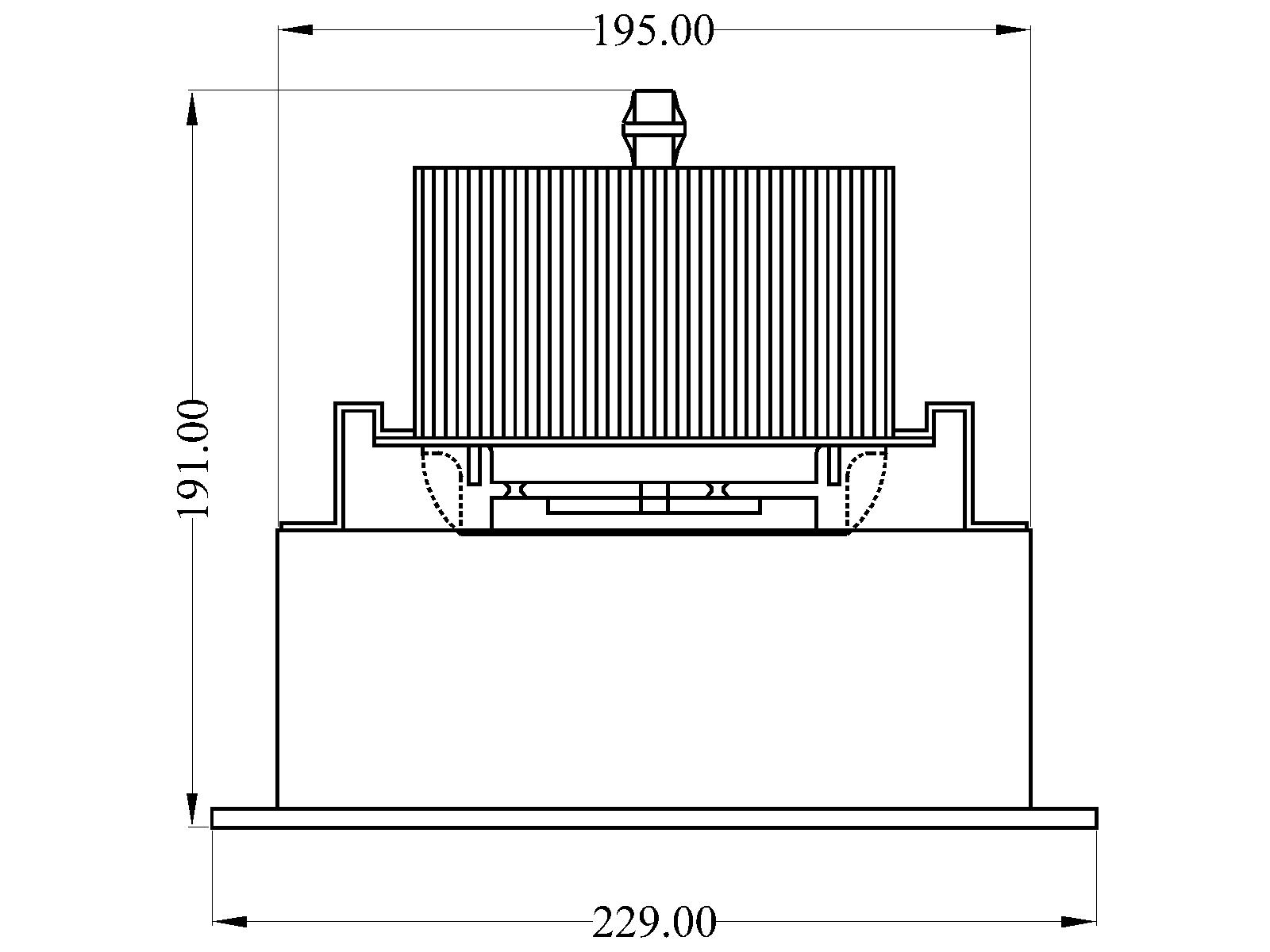

In the following diagrams please note the red color indicates the Shanghai FUCIDA company parts and Blue indicates the U-Tron parts.

Figure 2

In this diagram the reflectors are redesigned to redirect the light the same way it was used in the Halogen technology.

After the modifications:

By clicking the photo you can dowload the datasheet

Cost Analyses:

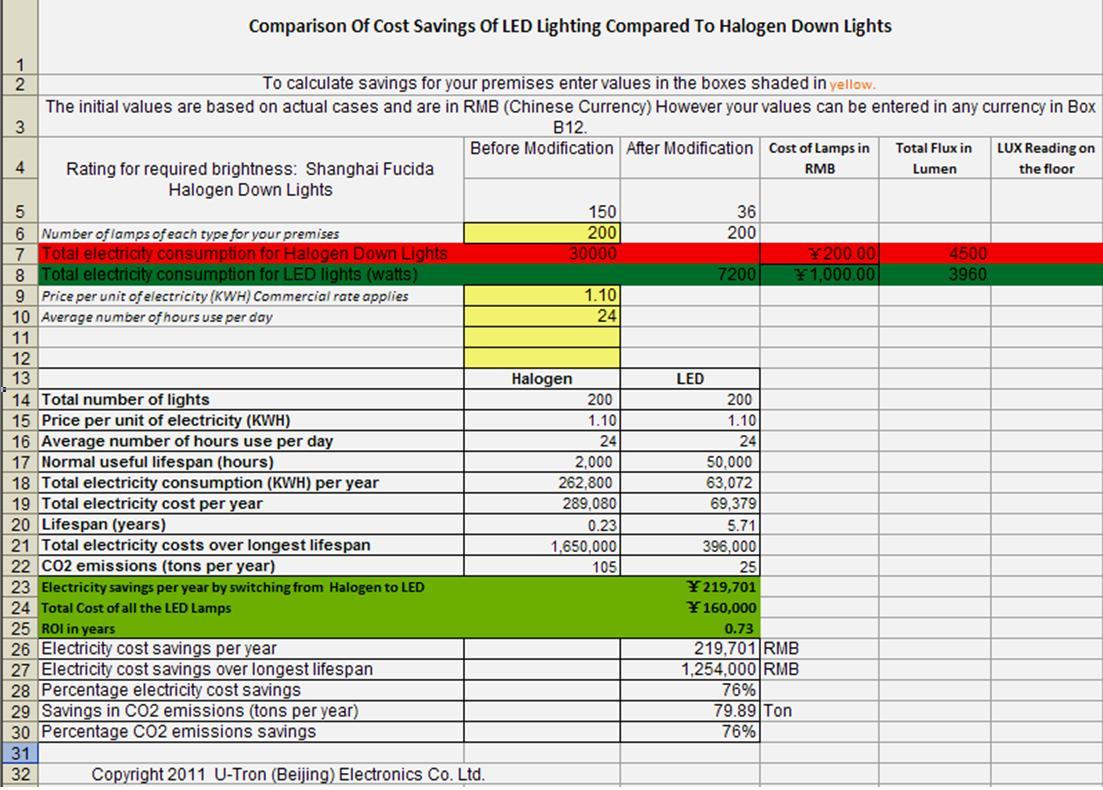

The savings can reach over 70% compared at the existing lumen out put. Please see the chart bellow which shows side by side the difference between the 200W Halogen and 36 Watt LED. The electricity savings alone will repay the cost of the LED down lights with in 8 months.

Figure4

This page is provided only for reference purpose.

Please use the Calculator on the U-Tron website for actual situations:

The Core LED Technology:

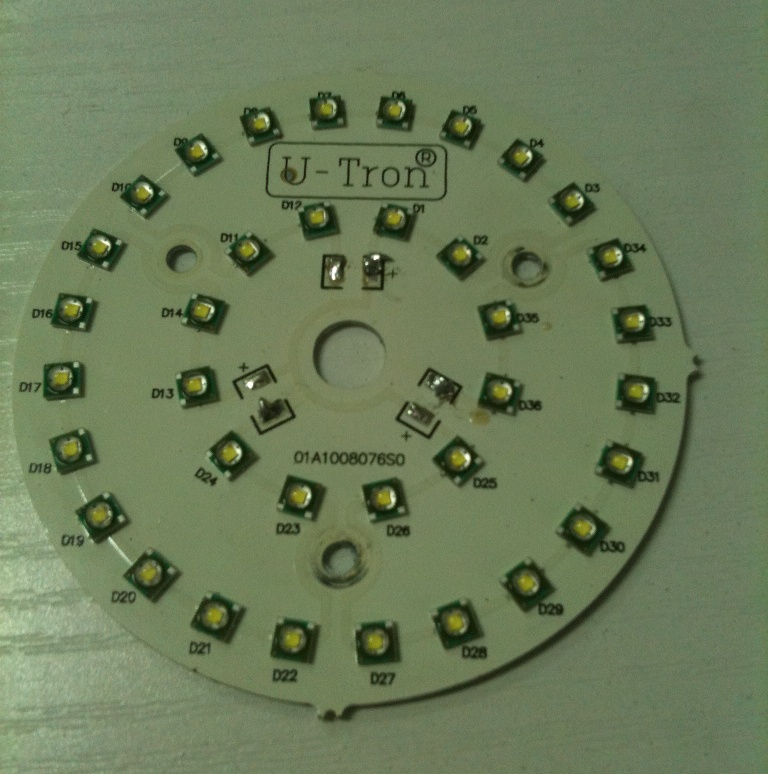

The light source is based on the Cree X-Lamp technology. Cree is the leading manufacture of LEDs today and our efforts of developing Lighting Fixtures mostly based on Cree available technology. Here is the PCB board that will be used in the UFO Engines, depending on the customers requirements any configurations of 30 to 36 chips can be installed.

Figure 5

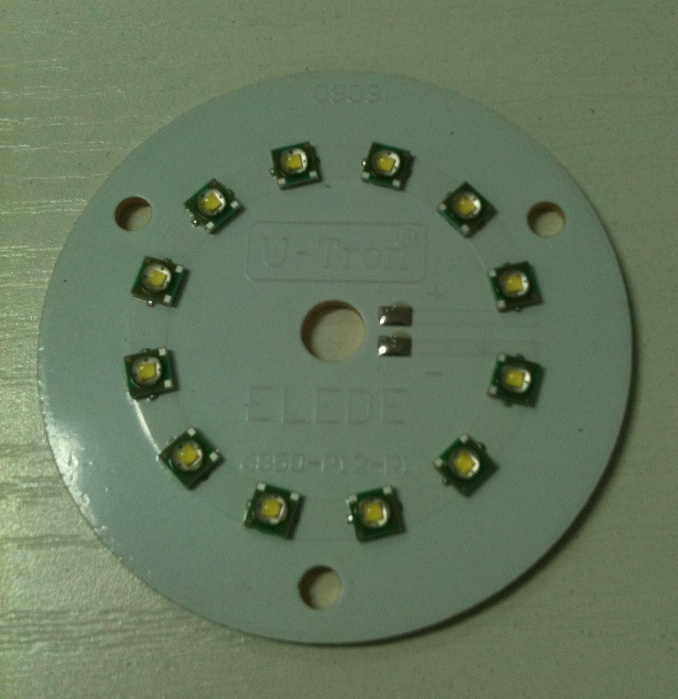

There are 2 versions available. See the Technical Specs or more detail:

Wiring Diagram:

U-Tron can meet the international standers of each country when shipping the goods. Please specify color coding when ordering.



Figure 6

Technical Specs:



Ordering Part Number		6870-U12-WR5	6870-U24-WR5
Number of LEDs		12 Pieces	24 Pieces
LED Type		Cree XPE R5 cool white	Cree XPE R5 cool white
Total Power Consumption		20 Watt	40 Watt
Power Rating		220V 50Hz	220V 50Hz
LED Total Flux		1,632 lm	2,736 lm
IP Rating		IP 55	IP 55
Lights Dimensions		362mm x 380mm Dia.	362mm x 380mm Dia.
Warranty on Workmanship		36 Months	36 Months
PHOTOMETRIC of UFO36
Total Integrated Flux (Lumens)		1,700 Lm	2,800 Lm
Coverage:		120° cone shape	120° cone shape
SPECTRORADIOMETRIC
Observer CIE 1931		2 degree	2 degree
Chromaticity Ordinate		x 0.4302	x 0.4302
Chromaticity Ordinate		y 0.3840	y 0.3840
Observer CIE 1976		2 degree	2 degree
Chromaticity Ordinate u'		0.2550	0.2550
Chromaticity Ordinate v'		0.5122	0.5122
Correlated Color Temp CCT (K)		5000	5000
Color Rendering Index (CRI)		85	85
Total Radiant Flux (milliWatts)		1579*	1579*
ELECTRICAL
Input Voltage (Volts AC)		100V 240V, 45-65 Hz	100V 240V, 45-65 Hz
Input Current (mA AC)		90 - 120	90 - 120
Temperature rating		-40 ºC to 45 ºC	-40 ºC to 45 ºC
EFFICACY
Lumens/Watt		87	87
Life cycle:		50000 hours	50000 hours
Recommended Heights:		4, 5 or 6Meters	4, 5 or 6Meters
Measured Illumination		(E) (Height=4.5m) ->70 lux	(E) (Height=4.5m) ->70 lux
Effective Illuminated Area		Height is equal to the radius of the coverage area	Height is equal to the radius of the coverage area
IP Rating is:			IP 55
Lamp housing material:	Aluminum Alloy, PC, and Fe		Aluminum Alloy, PC and Fe
Approvals:	Comply with all RoHS requirements. CE and UL pending		Comply with all RoHS requirements. CE and UL pending
Weight	1.5Kg		1.5Kg
Dimensions	220mm Height, 230 Diameter		220mm Height, 230 Diameter



UFO 36 Down Light Technical Specifications:

Ordering Part Number: 6870-U36-WR5

Also available in other color temperatures

Also available in E40 and E27 sockets.

Mounting Instructions:

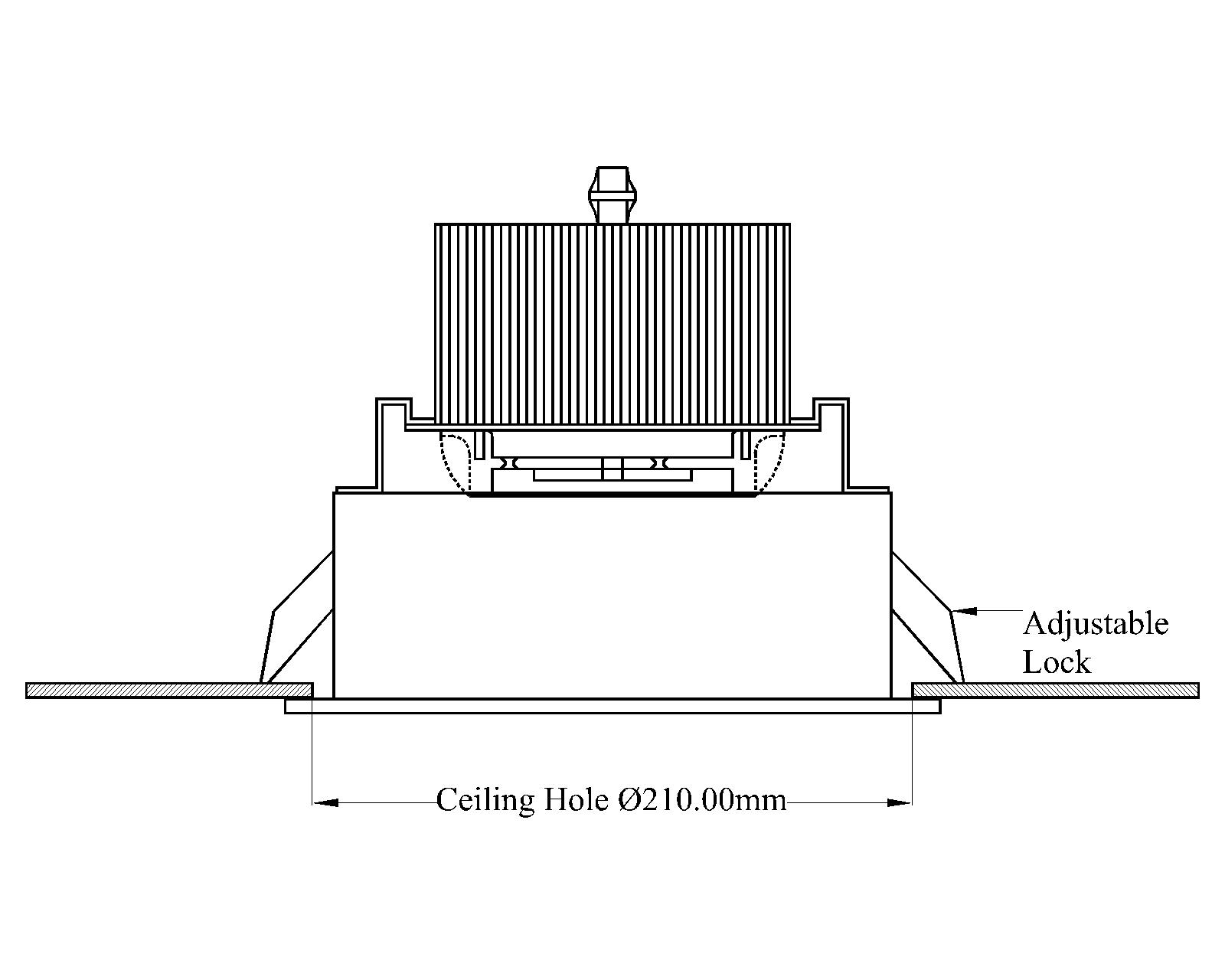

A stencil will be available with this manual for hole drilling. The hole size shall be 210 mm in Diameter. Hight clearance should be >350mm. The stopper that comes with the lamps has to properly secure before inserting the reflector cover. The reflector is attached with a metal wire to the main frame of the lamp to minimize injuries caused by falling. Make sure the 3 stoppers are pushed all the way down and securely holding the lamp. Since the LED lights weigh more than Halogen lamps extra caution must be applied when installing. If the false ceiling is not made of firm chalk board a separate metal or wooden plank should be inserted in-between the lamp and the ceilings. See figure 7 for more detail:

Figure 7

Applications:

The 10 to 40 Watt LED Down light has been designed to retrofit existing halogen and incandescent installations or replace them in architectural specifications. The rugged metal body and 50,000 hour lamp life reduce maintenance costs for hospitals and institutions, retail stores, and even landscaping applications.

Retail store display applications      Recessed down Residential hallways lighting    Hospitality and institutional    Landscape retrofit    Task lighting

Warranty

U-Tron (Beijing) Electronics Co. Ltd., warrant the products listed bellow for a period of 36 months from the date of shipment to be free from defects in material or workmanship and to be of the kind and quality designated or specified in the purchase agreements. If any products dose not meets the above warranty and the buyer promptly files a warranty claim U-Tron shall do the following:

U-Tron shall provide a 12 months "No Questions Asked" replacement of any faulty units at no charge to the customer. The time limit for exchange shall not exceed 30 days from the time a claim is filed by the buyers. The buyers shall return the faulty units within 30 days of filing the claim. The method of shipping back the faulty units to U-Tron shall be decided at that time by U-Tron and all shipping charges shall be borne by U-Tron.

At the end of the 12 month period U-Tron shall provide additional free extended warranty for another 24 months. During this 24 months time U-Tron shall repair or replace and re-certify every faulty units returned. Shipping charges for sending the units to U-Tron shall be the responsibility of the Buyers and the Shipping charges to return the repaired goods to the buyer shall be borne by U-Tron. Time limit for repairs shall not exceed 60 days.

U-Tron at our own option can elect to provide replacement units at any desired percentage to be warehoused and logged by the buyers for timely service of the extended warranty replacements. When the warranty expires the bad units and the unused spare parts items shall be shipped back to U-Tron unless otherwise stipulated in the contract or purchase agreements. If the warehoused quantities become 90% used up or nearing the end of stock, the buyers shall ship back the faulty units to U-Tron. U-Tron shall rotate the spare parts inventory with in 60 days of receiving from the buyers.

All warranty claims items shall by shipped to the buyers regardless of the geographical location, by air freight to the nearest airport or courier service to the customer site, and any returning items can be shipped by sea or air freight at the request of U-Tron. If the customer fails to return the said faulty units with in the time frame as instructed, it will be considered as sold and U-Tron reserve the rights to bill the customer for its full value.

U-Tron shall not bare any responsibilities with the buyers customer claims or shall not bare any other expenses incurred other than the units cost it self. Customer site un-installation and re-installation of any faulty units shall not be the responsibilities of U-Tron.

The warranties set forth herein shall be voided if the units have been 1) repaired or altered by any un-authorized person 2) subjected to misuse, negligence and accidents or operated in other than normal operation and use. 3) Connected, installed or modified in a manner not in accordance with U-Tron instructions.
