UFO E40 Downlight
A-6880-CIT-CW
A-6880-CIT-WW
These light bulbs are made of Nichia high power LED and can be used indoor or outdoor applications to retrofit any E40 socket. 10 Watts UFO E40 Downlight with single LED power chip is the ideal replacement for halogen or incandescent down lights in commercial or residential applications. Featuring LED from Citizen/Nichia, and comes in cool white, natural white and warm white color temperatures and housed in a aluminum metal body in silver, gray or black, these down lights are applicable to a wide range of lighting needs. U-Tron's award winning constant current boost driver and specially designed power supply are used in this UFO E40 Downlight which we believe will provide you with long lasting light for many years into the future.
By clicking the photo you can dowload the datasheet
Applications
The 10 Watt LED Down light has been designed to retrofit existing halogen and incandescent installations or replace them in architectural specifications. The rugged metal body and 50,000 hour lamp life reduce maintenance costs for hospitals and institutions, retail stores, and even landscaping applications.
Retail display applications Recessed down Residential hallways lighting Hospitality and institutional Landscape retrofit Task lighting
UFO E40 Downlight Technical Specifications
|
PHOTOMETRIC |
|
|
Total Integrated Flux (Lumens) |
1000 |
|
Coverage: |
120° cone shape convex lens |
|
SPECTRORADIOMETRIC |
|
|
Observer CIE 1931 |
2 degree |
|
Chromaticity Ordinate |
x 0.4302 |
|
Chromaticity Ordinate |
y 0.3840 |
|
Observer CIE 1976 |
2 degree |
|
Chromaticity Ordinate u' |
0.2550 |
|
Chromaticity Ordinate v' |
0.5122 |
|
Correlated Color Temp CCT (K) |
2945 |
|
Color Rendering Index (CRI) |
75, 80 |
|
Total Radiant Flux (milliWatts) |
1579* |
|
ELECTRICAL |
|
|
Input Voltage (Volts AC) |
100V, 240V, 45-65 Hz |
|
Input Current (mA AC) |
90 - 120 |
|
Input Power (Watts) |
13 |
|
EFFICACY |
|
|
Lumens/Watt |
76.9 |
|
Number of LED |
1 |
|
Life cycle: |
50000 hours |
|
Recommended Heights: |
4, 5 or 6Meters |
|
Measured Illumination |
(E) (Height=4.5m) ->13 lux |
|
Effective Illuminated Area |
Height is equal to the radius of the coverage area |
|
Physical Characteristics |
|
|
IP Rating is: |
IP 26 |
|
Lamp housing material: |
Aluminum Alloy, PC |
|
Approvals: |
Comply with all RoHS requirements. CE and UL pending |
|
Weight |
0.75 Kg |
|
Dimensions |
(H)58mm x (Dia)120mm |
Available Electrical Sockets
Track, E27 or E40 type sockets are available.
Maximum power consumption: 13 Watts - includes LEDs, Drivers and Power Supply.
(DC version available upon request)

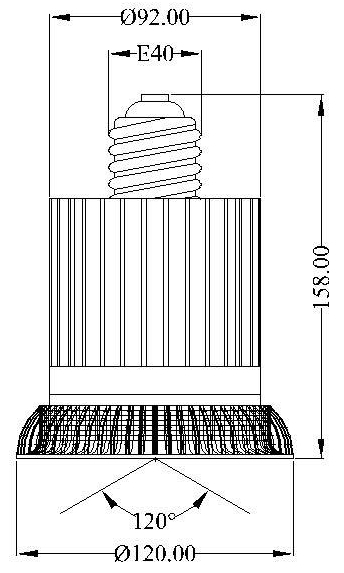

UFO E40 Downlight Technical Diagram
