优创连接件

6800-103-R1

优创路卡斯街灯系列的连接件，是为了满足不同的客户要求而设计的，它可以在较小直径灯杆上安装。优创的工程团队对此设计已取得成功。

此连接件是由铝材制成，此材质有耐腐蚀且重量较轻的特性，它是由俩个"手臂"组成， 用M8螺栓结合而成。此机械手臂两侧接触面有牙齿相咬合，两臂的角度范围从90至180度。臂扭的内部直径有50毫米，并且有两个M8螺栓在中心，臂扭的总重量为1.7公斤。

Figure a

Figure b

I

安装说明：

1  首先是设置连接件所需的角度，然后俩端分别用M8螺栓和M8螺母拧紧
2  俩个部件完美结合后，扭壁的另一端插入卢卡斯路灯中，用3个M10螺栓和螺母拧紧相连
3  现在可以安装一个小于直径50mm的灯杆
4  光定位后，两个M8螺栓应正确拧紧

Figure c

接线代码：

IEC标准

棕色=火线

蓝色=零线

绿黄色=地线

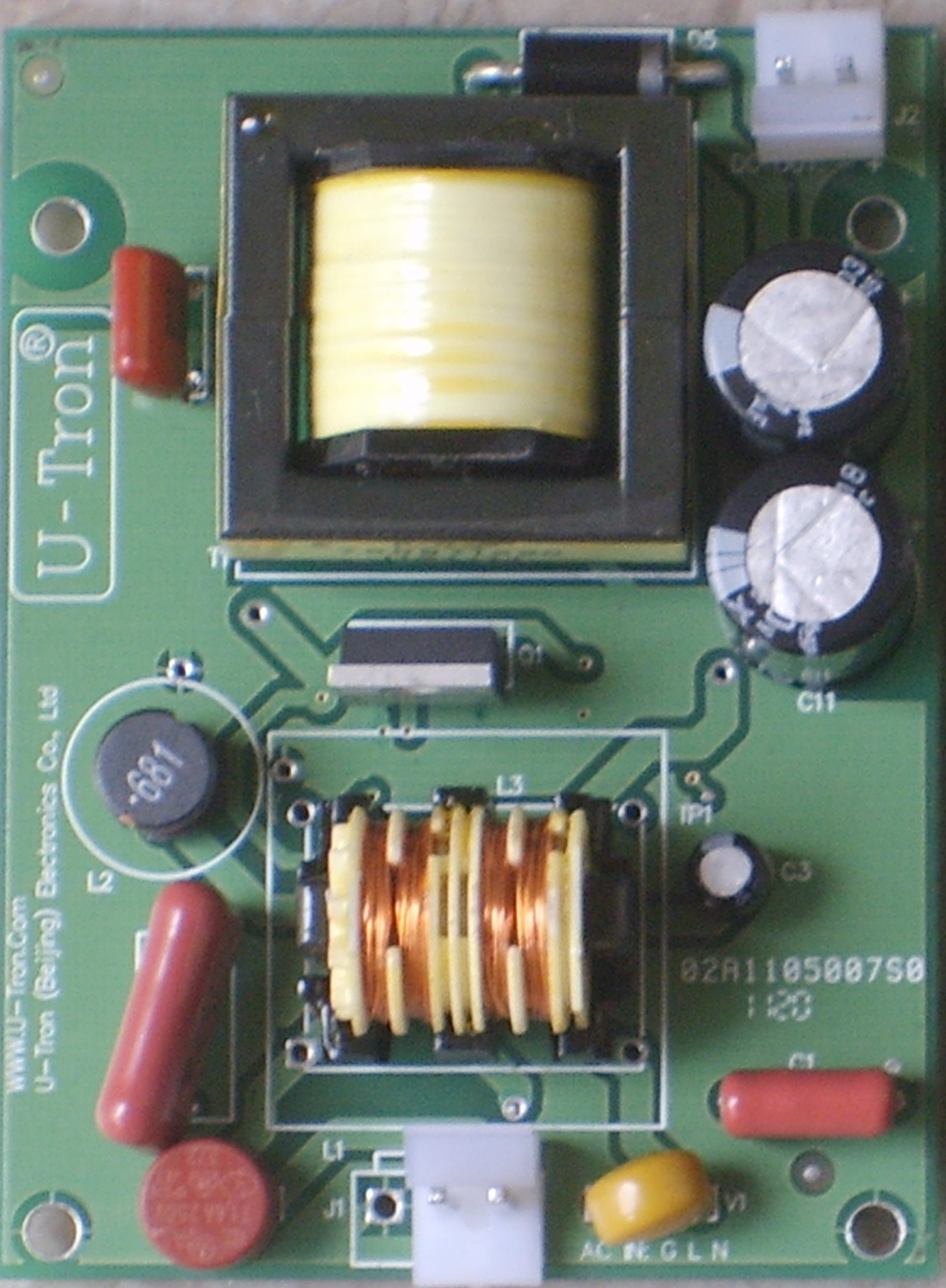

U-Tron announces its own LED Power Supply and High efficiency Driver for all Lucas and BatLED models.

You wanted 5 year warranty. You wanted universal power supply. You wanted >97 pfc. You wanted internal PSU. You wanted TRIAC dimmable:

And you got it from U-Tron.

U-Tron always made its own LED Driver boards and but sometimes outsourced the AC/DC power supplies. However, the power supplies available in the market have caused serious quality problems in the industries. U-Tron has decided to develop its own reliable power supply to match the LED qualities and warranty requirments. Since our volume of Lucas Street Lights sales has exceeded the average quantity, it’s imperative to take charge of all our components. Thanks to our engineeres, more plans have been laid out for 6800 series of high PFC and high Efficiency PSU research and development in the coming months.
