We named our Indoor Lights, BatLEDs due to their appearance: like Bats hanging from the ceiling. There are four models available and they are certified for CE, IP65 and Full RoHS compliance. Targeted applications include: Airports, Railway Stations, Warehouse, Supermarkets, Tunnels, Indoor Sport Arenas, and Building exterior lightning.

BatLEDs can be used indoors or outdoors. The are ideal for any continuous lighting application and can reduce electricity consumption and save money on a long term basis.

BatLED I 30 LED

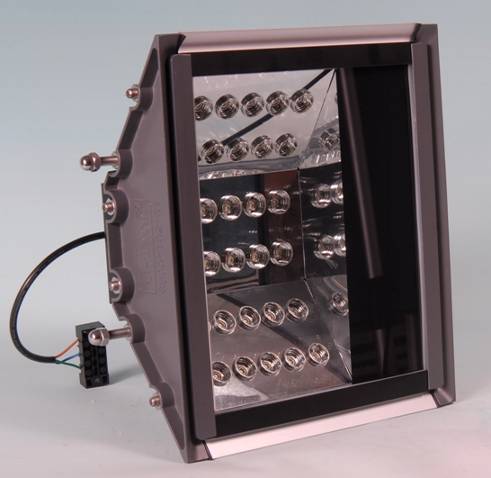

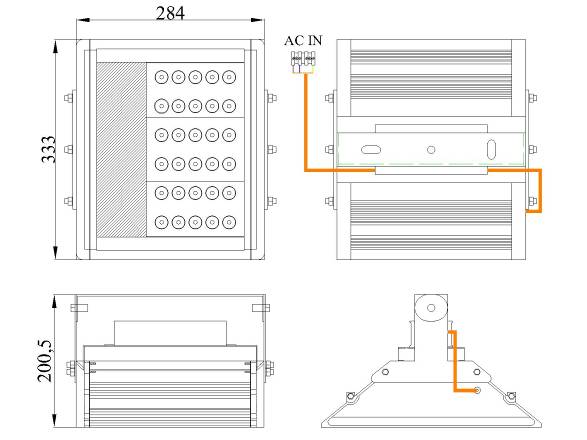

Figure 1

BI 30 Technical Specifications:

BI 30 Packaging Information:

Net Weight: 14.78 Kg

Gross Weight 16.70 Kg

Carton Size (2 Pc/carton): 760mmx400mmx200mm



Figure 2

Installation Guide:

There are two ways to install U-Tron BatLED Indoor Lights

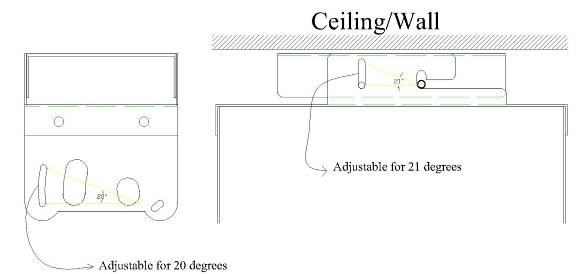

1. Using the Adjustable Mount Method –

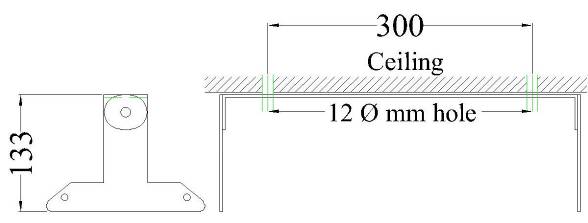

For wall or ceiling mounting. It can be tilted to adjust the angle of the BatLED.





Figure a

2. Using the Inverted Tee Mount Method –

This can be use in warehouses or other locations with a very high ceiling. Due the relatively low weight you can use a cable to mount the BatLED from a high ceiling.



Figure b

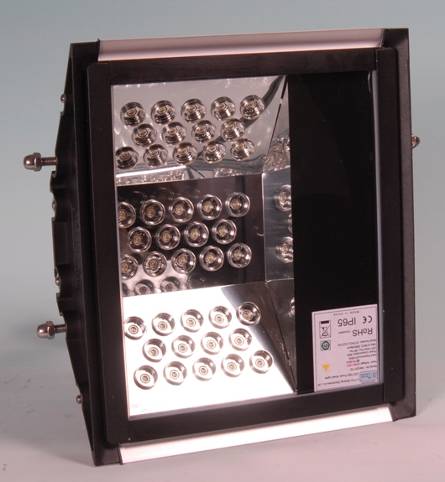

BatLED I 42 LED

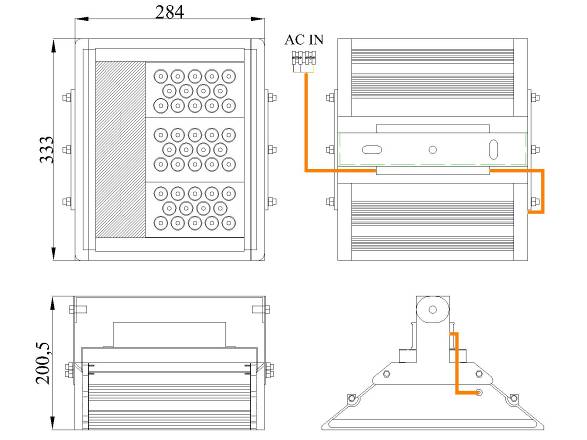

Figure 3

BI 42 Technical Specifications:



BI 42 Packaging Information:

Net Weight: 14.78 Kg

Gross Weight 16.70 Kg

Carton Size (1 Pc/carton): 760mmx400mmx200mm

Figure 4

Installation Guide:

There are two ways to install U-Tron BatLED Indoor Lights

1. Using the Adjustable Mount Method –



For wall or ceiling mounting. It can be tilted to adjust the angle of the BatLED.

Figure a



2. Using the Inverted Tee Mount Method –

This can be use in warehouses or other locations with a very high ceiling. Due the relatively low weight you can use a cable to mount the BatLED from a high ceiling.

Figure b



Power Supply for B I 30 and B I 42



Product Description:

Ø Product Name: Waterproof Constant Voltage LED Driver

Ø High efficiency, energy saving, environmentally friendly

Ø High stability, increases light efficiency and decreases lumen depreciation

Ø Assure LED stability, long life and light efficiency by constant voltage design

Ø Passed high/low temperature and IP67 waterproof testing

Ø Protection against short circuit and thermal overload

Ø Aluminum casing design for better heat dissipation

Technical Specifications:

Dimensions: L175*W72*H45mm





3- Pin Connector

3 pin connector



The three pin connector is an advanced feature of the BatLED, making it simple to connect and disconnect the external power supply. There is no need to open the whole lamp for maintenance because we guarantee that the power supply will be the only component to fail within 3 to 5 years and changing the power supply is a quick and simple process.

Note:This connector is not rated for outdoor use (i.e. it is not waterproof). If you need a waterproof connector please specify this when ordering.



Power Line Wiring

Power Line Installation Guide

Unless otherwise ordered by the customer, a common 4 prong connector will be supplied with each light. The ground wire is separated by one space for easy recognition. Live and Neutral are color coded to EU standards, however, there may be variations depending on the country in which you install the lamp.

If the external flexible cable or cord of the lamp is damaged, it should only be replaced by the manufacturer or its service agent or a similar qualified person to avoid danger and the risk of injury

Recommended Height



Model #	BatLED I 30	BatLED I 42
Ceiling or Wall	4-5 meters	5-6 meters

BatLED II 60 LED

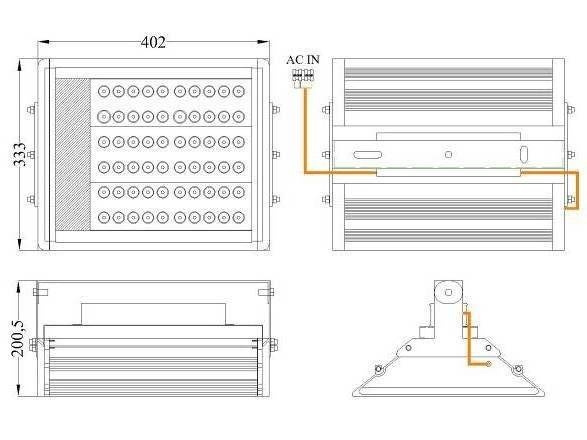

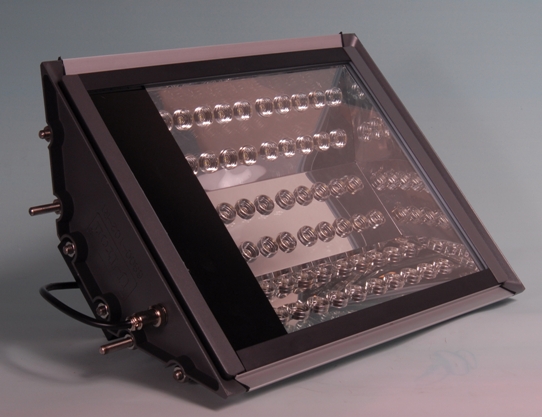

Figure 5

L2 60 Technical Specifications:



L2 60 Packaging Information:

Net Weight: 9.93 Kg (exclude Mounts)

Gross Weight 11.94 Kg

Carton Size (1 Pc/carton): 640x400x200mm

Figure 6

Installation Guide:

There are two ways to install U-Tron BatLED Indoor Lights

1. Using the Adjustable Mount Method –



For wall or ceiling mounting. It can be tilted to adjust the angle of the BatLED.

Figure a



2. Using the Inverted Tee Mount Method –

This can be use in warehouses or other locations with a very high ceiling. Due the relatively low weight you can use a cable to mount the BatLED from a high ceiling.





Figure b

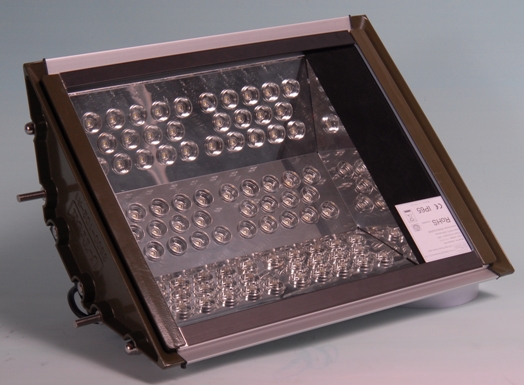

BatLED II 84 LED

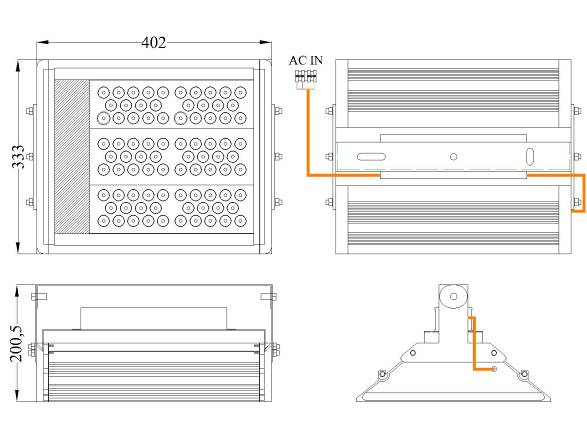

Figure 7

BII 84 Technical Specifications:



Number of LEDs	84
Total Power Consumption	110 watts
LED Type	Cree Q2
Total LED Consumption:	96.6 watts
Power Rating:	220V 50Hz
Power Supply Consumption:	10.5W
Temperature rating:	-40 ºC to 45 ºC
Maximum Operating Temperature	<50ºC (Open Air)
LED Initial Flux:	7,341 lm
LED Maintain:	7,200 lm
IP Rating:	IP 65
Light Dimensions:	402x333x200.50mm
Warranty on Workmanship	36 Months
Guarantee on LED < 50% loss (Which ever comes first)	60 Months or 50,000 Hrs

L2 84 Packaging Information:

Net Weight: 10.90 Kg

Gross Weight 13.01 Kg

Carton Size (1 Pc/carton): 640x400x200mm



Figure 8





Installation Guide:

There are two ways to install U-Tron BatLED Indoor Lights

1. Using the Adjustable Mount Method –



For wall or ceiling mounting. It can be tilted to adjust the angle of the BatLED.



Figure a



2. Using the Inverted Tee Mount Method –

This can be use in warehouses or other locations with a very high ceiling. Due the relatively low weight you can use a cable to mount the BatLED from a high ceiling.

Figure b













Recommended Height



Model #	BatLED II 60	BatLED II 84
Ceiling or Wall	6-7 meters	7-8 meters







Figure 9

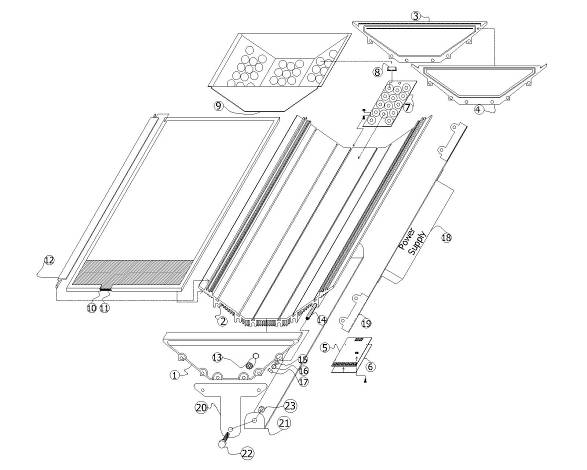

1 - Tail	7 – LED Board	13 – IP 68 Connector	19 – Power Supply Holder
2 – Main Frame	8 – Reflector Caps	14 – M8 Stud	20 – Inverted Tee
3 - Tail	9 – Reflector Cover	15 – Flat Washer	21 – Top Bar
4 - Gasket	10 – Glass Rubber	16 – Split Lock Washer	22 – M12 Hex Bolt
5 – Driver Board	11 – Glass Cover	17 – M8 Hex Nut	23 – M12 Hex Nut
6 – Heat Transfer Sole	12 – Glass Holder	18 – Power Supply
